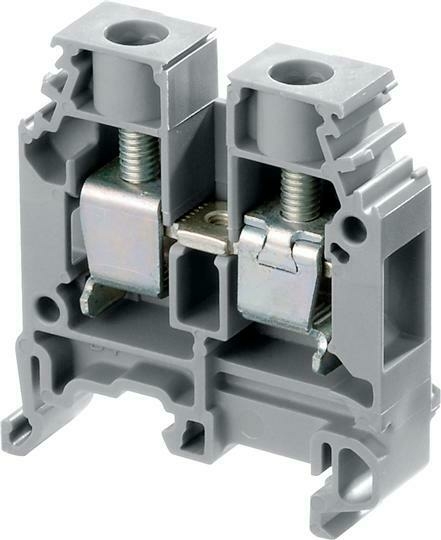

Borne M10/10.1 - Entrelec

Descrição

Extended Product Type:M10/10

Product ID:1SNA115120R1700

EAN:3472591151206

Manufacturer Part No: 011526120

Catalog Description:M10/10 Screw Clamp Terminal Blocks - Feed-through - Grey

Technical

Rated Cross-Section:10 mm²

Spacing:10 mm

Connection Type:Screw clamp

Function:Feed-through

Number of Levels:1

Connecting Capacity Main Circuit:Screw Clamp / Flexible 1x 0.5 ... 10 mm²

Screw Clamp / Rigid 1x 0.5 ... 16 mm²

Screw Clamp / With Insulated Ferrrule 1x 6 mm²

Gauge Type:B6

Rated Current (In):Main Circuit 57 A

Rated Short-time Withstand Current (Icw):for 1 s 1200 A

Rated Voltage (Ur):1000 V

Rated Impulse Withstand Voltage (Uimp):8000 V

Dielectric Test Voltage:2000 V

Pollution Degree:3

Degree of Protection:acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20

Insulation Material:Polyamide

Mounting on DIN Rail:G32 (32 x 15 mm Mounting Rail) acc. to IEC 60715

TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715

Wire Stripping Length:12.0 mm

Recommended Screw Driver:5.5 ... 6 mm

Fabricante: Entrelec
