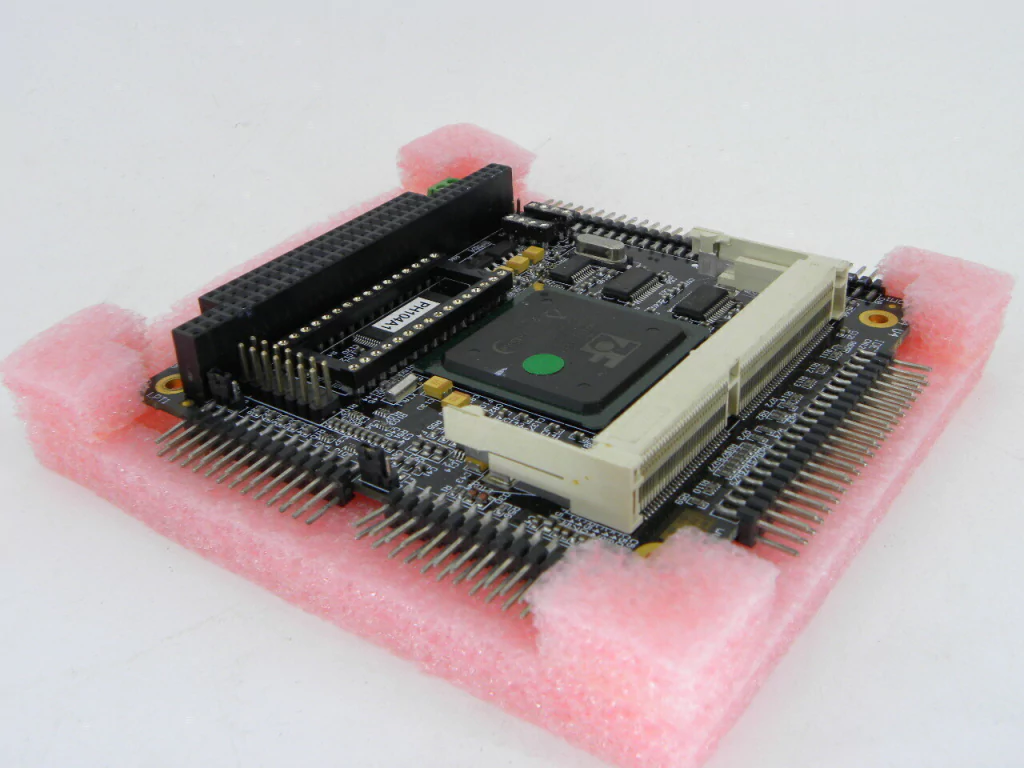

CPU Industrial PC104 MZ104 TRI-M - usada

Descrição

GENERAL DESCRIPTION

The MZ104+ embedded control module incorporates the revolutionary ZFx86 “PC-on-a-chip” processor with dual 10/100BaseT Ethernet and 32-bit PCI Bus. The MZ104+ offers the quickest route of integrating a full x86 AT-compatible computer into your embedded control application using the PC/104+ form factor. The MZ104+ is fully compatible with all standard PC Software and will run any standard operating system capable of running on a fully compatible PC with FPU such as Linux, DOS, many RTOS, and WinCE, Windows 9x, and Windows NT.

• 586 CPU
• 32-bit CPU core operating at 1331, 128, 100, 66, 64 and 33MHz
• 8K byte Level 1 cache, write back and write through support
• Floating point unit
• PC Core Logic with PCI enhancement
• 32 bit 33MHz PCI rev 2.1 compliant “Northbridge” and “Southbridge”
• AT-compatible DMA controllers, interrupt controllers, timer/counters
• AT keyboard controller and Real-time clock

Memory

• Synchronous DRAM support
• Onboard 144-pin DIMM socket for up to 64MB SDRAM

Ethernet Interface

• Dual Intel 82559ER 10/100 BaseT Fast Ethernet Controllers.

Mechanical/Environmental

• PC/104+ form factor compliant, 3.55" x 3.775 x 0.9" (90mm x 96mm x 23mm)
• Standard PC/104+ 32-bit stackthrough connector for PC/104+-compliant modules
• ZFx86 Case Temperature (33, 66, 100MHz operation): -40° to 185°F (-40° to 85°C)2
• ZFx86 Case Temperature (133MHz operation): -4° to 158F (-20° to 70C)
• Storage temperature: -67° to 185°F (-55° to 85°C)

Weight: 0.15 lb. (70 g)

Manufacturer: Tri-M Technologies

* produto usado, testado e em funcionamento *
