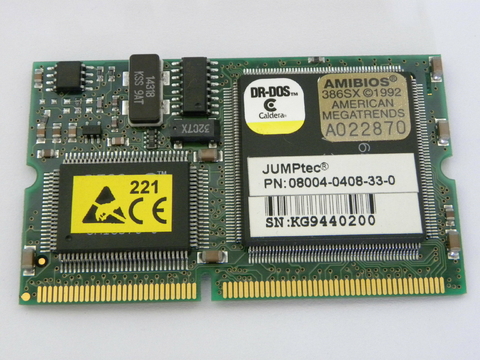

DIMM-PC/386-I JUMPtec / Kontron

Descrição

The DIMM-PC/386 integrates the complete functionality of an 80386 SX motherboard with CPU, System-BIOS, 4 MByte DRAM, keyboard-controller and real time clock.

Technical Data:

• Licensed DR-DOS already pre-installed
• CPU 386SX
• Adjustable CPU Speed 10/33/40 MHz
• Memory, onboard 2/4 MByte
• DIMM-PC/386-I: CPU 386SX - 10/33 MHz
• 8 MByte IDE compatible flash disk
• Two serial ports, COM1 and COM2 with TTL signals
• Floppy interface
• IDE harddisk interface
• Real time clock
• One parallel port, LPT1 with EPP support
• Keyboard controller
• EEPROM for CMOS-SETUP
• 5V only power supply
• Programmable /CS output
• Dimensions: 68x40 mm (2.7x1.6”)
• Temperature: operation: 0° to 65°C | storage: 10° to 85°C
• Max. humidity: operation: 10% to 90% | storage: 5% to 95% (do not allow condensing)

P/N: 08004-0408-33-0 with 4 MB DRAM and 6 MB integrated IDE flash-DISK
