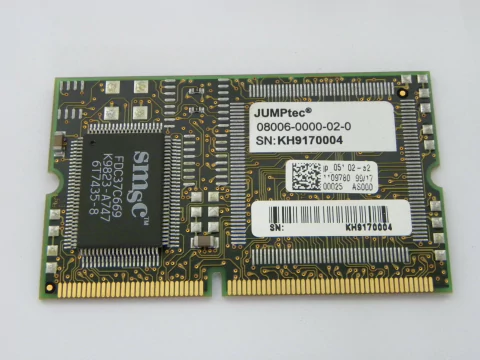

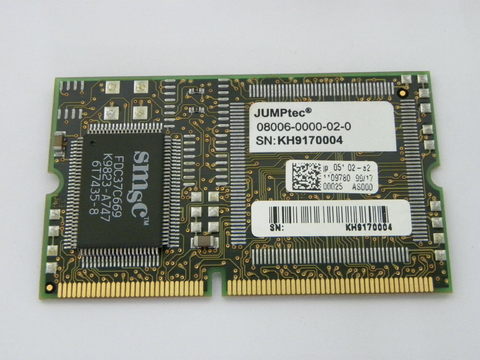

The DIMM-PC/COM1 is an add-on module for the JUMPtec® DIMM-PC® series.

It is equipped with the SMC 37C665 I/O-controller and adds two more serial ports to a DIMM-PC® system.

The signals of the serial ports are available on the DIMM-I/O connector in TTL levels.

The customer can decide to use different types of interfaces (RS232, RS485, TTY etc.) by adding his own driver circuitry on his base board.

The DIMM-PC/COM1 is designed for a 144pin DIMMconnector known from notebooks as memory socket.

Note that this connector is different to the used for the DIMM-PC/CPU itself.

The pinout of DIMM-PC/CPU and DIMM-PC/VGA1 are well considered, so an easy and short routing on the customers design is possible (most of the time direct pin to pin)

• 2 serial interfaces | 16550 compatible | Up to 115 kBaud | TTL signal levels
• Power Supply: 5 Volt only power supply | Low power CMOS
• Dimensions: 68x40 mm (2.7x1.6”)
• Temperature: operation: 0° to 65°C | storage: -10° to 85°C
• Max. humidity: operation: 10% to 90% | storage: 5% to 95% (do not allow condensing)

Mechanical:

• Shock: 50 G / 20 ms
• Vibration: 1 G / 0-600 Hz

P/N: 08006-0000-02-0
