General information
- Family: Intel Pentium

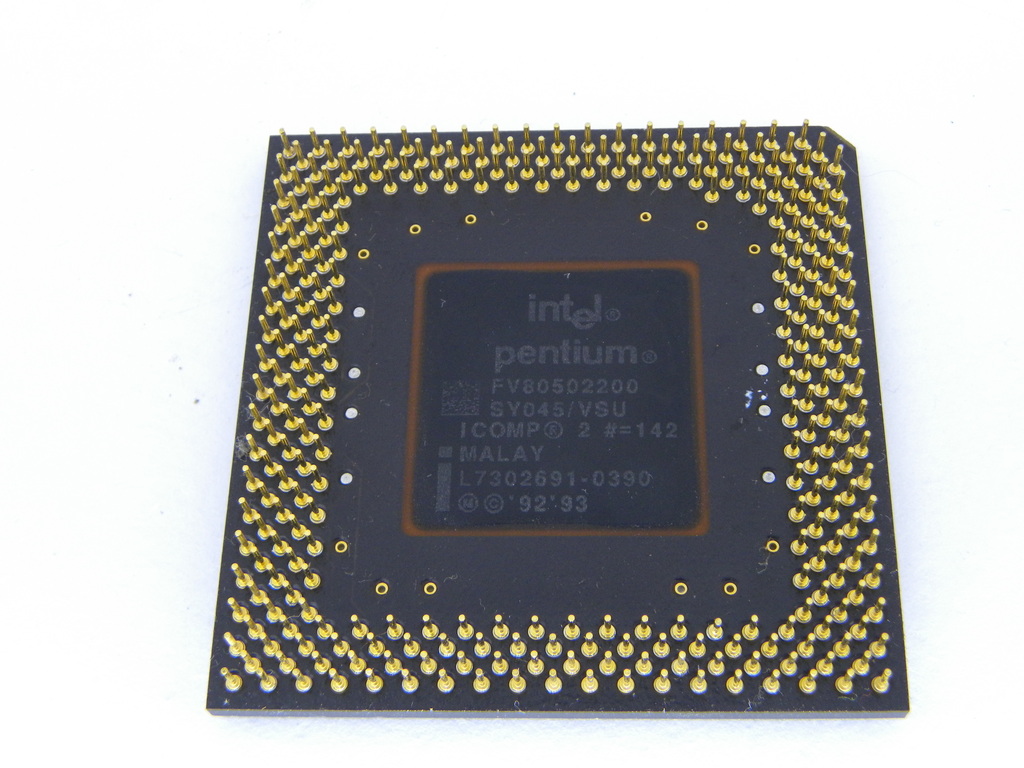

- CPU part number: FV80502200 is an OEM/tray microprocessor
- Frequency: 200 MHz
- Bus speed: 66 MHz
- Clock multiplier: 3
- Socket: Socket 7
Architecture / Microarchitecture
- Microarchitecture: P5
- Processor core: P54CS
- CPUID: 52C | 252C
- Manufacturing process: 0.35 micron | 3.3 million transistors
- Data width: 32 bit
- Floating Point Unit: Integrated
- Level 1 cache size: 8 KB 2-way set associative code cache | 8 KB 2-way set associative write-back data cache
- Physical memory: 4 GB
Electrical / Thermal parameters
- Min/Recommended/Max V I/O or secondary: 3.135V / 3.3V / 3.6V
- Minimum/Maximum operating temperature: 0°C - 70°C
- Minimum/Typical/Maximum power dissipation: 2.5 Watt / 6.5 Watt / 16.56 Watt
- Thermal Design Power: 15.5 Watt
* Produto usado, testado e em funcionamento *
